MIG Welding Defects and How to Prevent Them
Metal Inert Gas (MIG) welding is one of the most widely used welding processes in modern manufacturing. Its speed and adaptability make it the preferred method across industries such as automotive, construction and aerospace.
Despite its advantages, MIG welding is not immune to defects. Welding defects can reduce the mechanical strength of joints, compromise safety and increase costs through rework and scrap. Working with experienced welding professionals is essential for ensuring quality and avoiding these problems.

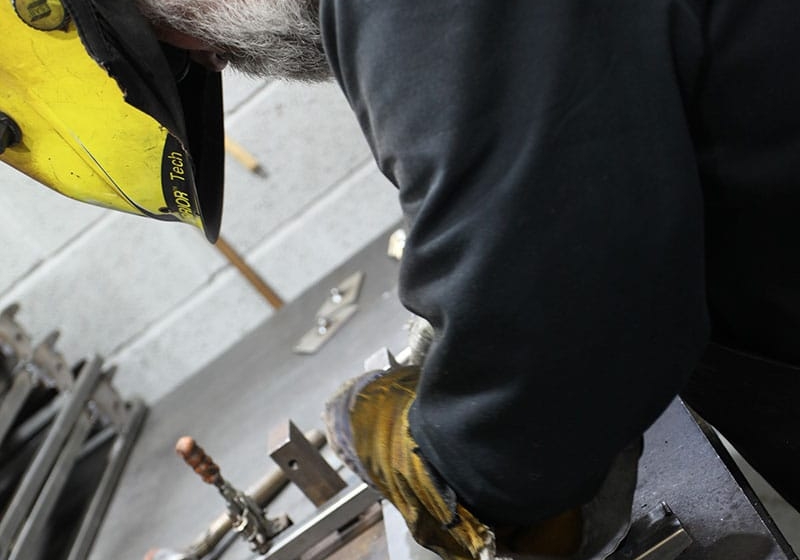

At RCT, MIG welding is applied to critical assemblies such as minibus and military seating, industrial furniture frames and load-bearing tubular components; applications where weld quality directly underpins strength, safety and reliability.
Why Welding Quality Matters
Aside from looking unsightly, poor welding quality can directly reduce product strength and reliability. Defective welds may fail under stress, leading to equipment breakdown, safety hazards or catastrophic failure in critical applications.
One example was the Marcus Oil explosion in Houston. A large steel vessel had been modified and sealed with welds that did not meet industry standards. The company used unqualified welders and skipped pressure testing. When the welds failed, the vessel exploded, releasing flammable hydrocarbons and causing major damage.
The financial impact is also significant: rework, production downtime and wasted material increase manufacturing costs. To ensure consistency and safety, welding operations must comply with recognised industry standards such as ISO 3834, AWS D1.1 and ASME Section IX. These standards provide guidelines for welding procedures, inspection and quality assurance.
The MIG Welding Process
In MIG welding, a consumable wire electrode is fed continuously through a welding torch, creating an arc that melts the wire and the base metal to form a joint. A shielding gas flows around the arc to protect the molten weld pool from contamination.
The quality of a weld depends not only on this basic process, but also on how well the welder prepares the materials, sets the equipment up and applies proper technique.
At RCT, these factors are tightly controlled in automated MIG welding cells, where voltage, wire feed speed and torch angles are monitored to ensure batch consistency.
Several parameters influence weld quality, including:
Voltage and current settings:
These are the power parameters of the welding arc. Voltage controls arc length and bead shape, while current determines the depth of penetration and the amount of heat delivered.
Wire feed speed:
This is the rate at which the filler wire is fed into the weld pool. It governs how much filler metal is deposited and directly affects bead size and consistency.
Shielding gas composition and flow rate:
Shielding gas protects the molten weld from atmospheric contamination. The gas type (for example argon or carbon dioxide) and its flow rate determine arc behaviour, penetration and weld cleanliness.
Torch angle and travel speed:
Torch angle is the position of the gun relative to the joint, while travel speed is how quickly it moves along the weld. Both factors affect bead shape and penetration.
Electrode extension (stick out):
This is the distance from the contact tip to the arc. Too long or too short an extension changes current density and arc stability, influencing weld consistency.
Material type and thickness:
Different metals and thicknesses require specific heat inputs and filler choices. These characteristics determine the correct welding settings.
Joint design and preparation:
This refers to how the pieces are cut, cleaned and aligned before welding. Proper preparation allows for full access and penetration, resulting in strong, defect free welds.
Cleanliness of the workpiece:
This is the removal of contaminants such as rust, oil, paint or moisture. A clean surface prevents porosity and other contamination related defects.
1 Porosity
Porosity refers to cavities or voids in the weld metal caused by trapped gas. These small holes can appear on the surface or within the body of the weld, weakening its strength and making it less resistant to stress or pressure. Porosity often results in a rougher finish and may require rework if detected during inspection.
Causes:
- Contaminated base material or filler wire
- Inadequate shielding gas flow or draughts
- Moisture or oil on the workpiece
How to avoid weld porosity:
- Clean the base material thoroughly to remove any oil, rust or paint that could release gas when heated.
- Ensure correct gas flow and regularly check for leaks or blockages in the gas supply.
- Protect the weld area from wind or draughts by using screens or welding indoors, as moving air can displace shielding gas.
- Keep consumables dry and store filler wire and electrodes in suitable conditions to prevent moisture absorption.
2Incomplete Fusion
Porosity refers to cavities or voids in the weld metal caused by trapped gas. These small holes can appear on the surface or within the body of the weld, weakening its strength and making it less resistant to stress or pressure. Porosity often results in a rougher finish and may require rework if detected during inspection.
Causes:
- Contaminated base material or filler wire
- Inadequate shielding gas flow or draughts
- Moisture or oil on the workpiece
How to avoid weld porosity:
- Clean the base material thoroughly to remove any oil, rust or paint that could release gas when heated.
- Ensure correct gas flow and regularly check for leaks or blockages in the gas supply.
- Protect the weld area from wind or draughts by using screens or welding indoors, as moving air can displace shielding gas.
- Keep consumables dry and store filler wire and electrodes in suitable conditions to prevent moisture absorption.
3 Incomplete Penetration
Incomplete penetration occurs when the weld metal does not extend through the full thickness of the joint. It can leave parts of the joint unfused at the root, creating internal voids that significantly reduce the strength of the weld. Incomplete penetration often makes the weld less durable under load or vibration and may not pass inspection where full penetration is required by design or standard.
Causes:
- Poor joint preparation or groove design
- Incorrect welding settings
- Low current or voltage
How to avoid incomplete penetration:
- Prepare joints correctly by cleaning, aligning and shaping the edges to allow for full access and penetration.
- Use appropriate welding settings for the specific material thickness so the arc delivers enough heat without causing burn through.
4 Weld Cracks
Weld cracks are fractures or separations that can form in the weld metal or heat affected zone (HAZ). They drastically reduce joint strength and can appear either on the surface or inside the weld, sometimes spreading further as the component is loaded. Because cracks act as stress concentrators, they create points of weakness that may cause sudden failure. They are among the most serious welding defects and usually require immediate repair or rejection of the weld.
Causes:
- High residual stress or restraint
- Rapid cooling
- Contamination in the weld metal
How to avoid weld cracks:
- Preheat thicker materials to reduce thermal gradients and minimise the risk of cracking as the weld cools.
- Use proper cooling methods to avoid rapid temperature changes that can cause stress in the weld or heat affected zone.
- Select filler metals compatible with the base material so the weld and parent metal contract at similar rates, reducing internal stress and preventing cracks.
5 Undercut
An undercut is a groove melted into the base metal alongside the weld, left unfilled by weld metal. This shallow depression weakens the edge of the joint and reduces its effective thickness. Undercuts often act as stress raisers, making the weld more prone to cracking or fatigue failure under load. They can also make the weld visually unacceptable and may require costly repair if identified during quality inspection.
Causes:
- Excessive voltage
- Fast travel speed
- Incorrect torch angle
How to avoid undercutting:
- Reduce voltage to prevent excessive melting at the edges of the joint and avoid creating a groove.
- Control travel speed so that the filler metal has time to deposit properly and fill the weld area without leaving gaps.
- Maintain correct torch positioning to ensure the arc is directed at the joint, providing balanced heat and consistent weld formation.
6 Spatter
Spatter consists of small droplets of molten metal expelled during welding, which solidify on the workpiece surface. These particles adhere to the surrounding material and can create an uneven, rough finish that requires grinding or cleaning. While spatter does not always weaken the weld itself, it increases clean up time and can affect the usability of the finished component.
Causes:
- High voltage
- Incorrect polarity
- Unstable arc conditions
How to avoid welding spatter:
- Ensure voltage setting is within the recommended range for the material and thickness, which helps maintain a stable arc and reduce excess spatter.
- Maintain correct polarity according to the process requirements, since incorrect polarity can destabilise the arc and increase spatter levels.
- Ensure consistent arc stability by keeping a steady hand, correct stick out and uniform travel speed.
7 Burn Through
Burn through occurs when excessive heat melts completely through the base metal. This type of defect creates a hole in the weld zone, leaving the joint weakened and unusable. It is particularly common when welding thin sections, where too much energy quickly destroys the base metal. Burn through not only compromises strength but also requires additional repair work, slowing down production and increasing costs.
Causes:
- Welding thin materials with high current
- Slow travel speed
How to avoid burn through:
- Reduce heat input by lowering current or voltage settings so the thin material is not overheated.
- Increase travel speed to prevent excessive heat build up in one area, which helps avoid melting through the base metal.
- Use backing bars or support plates when welding thin sections to provide extra stability and prevent burn through.
8 Overlap
Overlap occurs when weld metal flows over the base metal surface without properly fusing. This defect leaves excess metal sitting on top of the joint without contributing to its strength. It creates areas where stress can concentrate and can also trap slag or contaminants, further reducing the integrity of the weld. In many cases, overlap requires grinding and re-welding to restore the quality of the joint.
Causes:
- Improper electrode angle
- Excessive deposition
- Low travel speed
How to avoid overlaps in welding:
- Maintain correct torch angle to ensure proper fusion between the weld metal and base material, avoiding excess build up.
- Regulate filler deposition by controlling wire feed speed so the weld bead is balanced without excessive overlap.
- Avoid overly slow travel speeds, since moving too slowly can deposit too much metal and allow it to overflow rather than fuse.
9 Excessive Reinforcement
Excessive reinforcement results when too much weld metal is deposited above the joint. This creates a raised bead that is larger than necessary, which does not add strength and may even cause stress concentrations at the toe of the weld. Excessive reinforcement also wastes filler material, increases the need for machining or grinding and can make the weld fail to meet dimensional or visual acceptance standards.
Causes:
- Slow travel speed
- High filler deposition rates
How to avoid excessive reinforcement:
- Optimise wire feed speed so the correct amount of filler metal is deposited without creating excessive build up.
- Adjust travel speed to keep the weld bead uniform and prevent too much reinforcement.
- Aim for controlled bead geometry, ensuring the weld surface is smooth and evenly shaped to reduce stress points.
Best Practices for Consistent MIG Welding
Regular inspection and maintenance of welding equipment
Welding machines, torches and associated tools should be inspected and serviced routinely. Preventive maintenance reduces the likelihood of equipment faults that can lead to poor weld quality or unexpected downtime.
Correct welder settings for each application
Every material and joint type requires specific voltage, current, travel speed and shielding gas settings. Selecting parameters that match the application ensures proper penetration, fusion and bead appearance.
Adequate operator training and welder certification
Skilled welders with formal training and recognised certification are more consistent in their technique. Proper training equips operators with the knowledge to adjust settings, recognise defects and apply corrective measures.
Use of non-destructive testing (NDT) to detect hidden flaws
Techniques such as ultrasonic testing, radiography and dye penetrant inspection help identify internal or surface defects without damaging the weld.
Strong quality assurance procedures
Implementing quality control systems aligned with standards such as ISO, AWS and ASME ensures that every weld is inspected and documented. These procedures build reliability and prevent the need for rework.
How Professional Welding Services Reduce Defects
Professional welding services employ advanced methods such as robotic welding and CNC fixtures to deliver consistent quality. RCT combines robotic CoWelders with coded welders and precision jigs, achieving repeatable accuracy across welds.
Certified welders ensure compliance with a variety of standards. Preventive measures such as thorough testing, inspection and documentation further reduce the risk of defects, guaranteeing reliability and traceability.
Ensuring Strong and Defect-Free MIG Welds
MIG welding defects such as porosity, cracks, undercut and incomplete fusion can compromise the strength and safety of welded components. By understanding their causes and applying preventive measures, manufacturers can achieve defect free welds.
Working with experienced welding professionals provides the additional assurance of industry compliance, advanced technology and consistent quality. For manufacturers aiming to enhance reliability and reduce production risks, defect free MIG welding is not just an option, it is a necessity.
