What is Mandrel Bending? Benefits and Uses
Mandrel bending is a specialised tube bending process for creating smooth, accurate tube bends without compromising strength or quality. Used widely in industries like automotive, aerospace and furniture design, this technique ensures that tubes are shaped to exact specifications while maintaining their structural integrity.

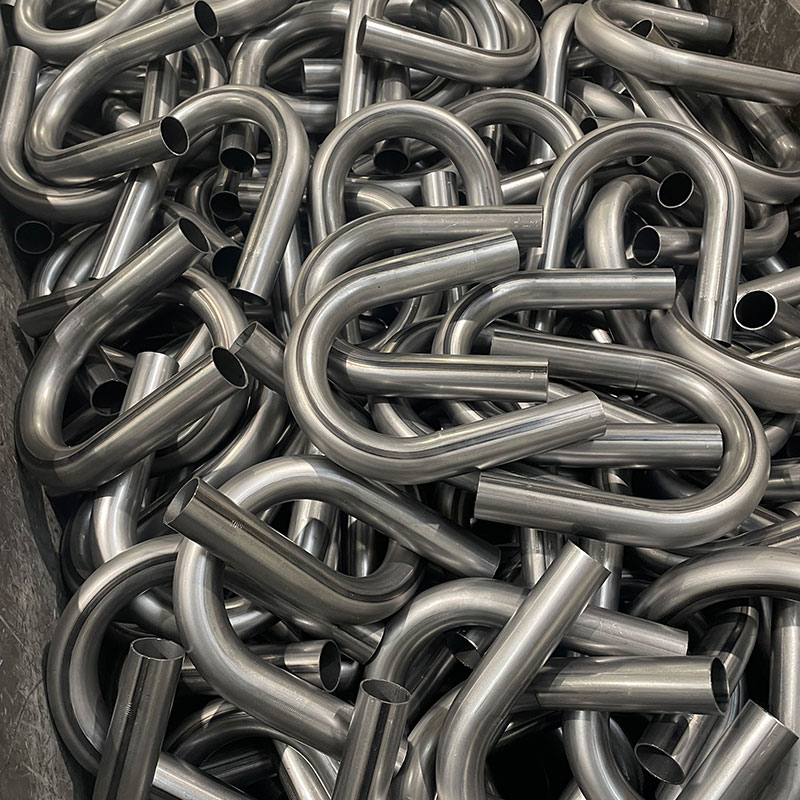

What is Mandrel Tube Bending?
When a tube is bent, the metal on the outer side stretches and thins because it travels a greater distance during the bend, while the inner side compresses and thickens as it moves a shorter distance. This can lead to issues such as flattening or tearing on the outer radius or collapsing and rippling on the inner radius.
Mandrel bending solves these challenges by inserting a rod, or mandrel, inside the tube during the bending process. This mandrel provides internal support, preventing collapse and ensuring the tube maintains its shape and strength throughout the bend. This technique is most commonly used in CNC rotary draw bending, enabling manufacturers to achieve precise and consistent results, even with tight-radius bends or delicate materials.
What is a Mandrel?
A mandrel is a metal bar insert or core that supports the pipe or tube while it is being bent and keeps the tube from collapsing. Mandrels come in various forms, from simple plugs to more advanced ball/disc assemblies, tailored to suit the specific needs of the tube being worked on. Plug mandrels are ideal for straightforward applications. For more complex bends, mandrel balls or discs can be added to provide additional support through a larger degree of the bend.
Mandrel balls and discs are designed as sections of a ball, usually the same diameter as the mandrel, and are linked together, creating a flexible support structure. This flexibility allows the mandrel to maintain contact with the inside of the tube throughout the bend, ensuring a smooth, consistent result and reducing the risk of deformation or collapse.

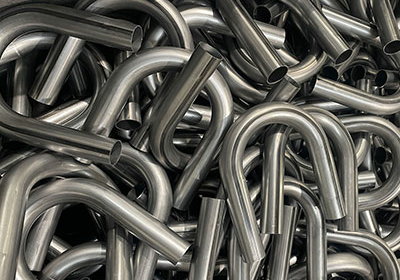

Mandrel bending offers a range of advantages that make it the go-to technique for industries requiring high-quality, reliable tubular manufacturing.
Enhanced Structural Integrity
Mandrel bending is designed to keep the structural integrity of the tube intact throughout the bending process. This reliability is especially important for safety-critical applications where tubes must perform consistently under stress.
Precision for Tight Tolerances
Manufacturers often rely on mandrel bending to meet exacting specifications. This process ensures every bend matches precise measurements, which is vital for industries where accuracy directly impacts performance.
Consistency Across Production
When producing components in high volumes, consistency is key. CNC mandrel bending helps ensure that each tube meets the same specifications, minimising defects and reducing variability. This level of precision is critical for manufacturers producing assemblies where every part must fit and function seamlessly.
The Mandrel Bending Process

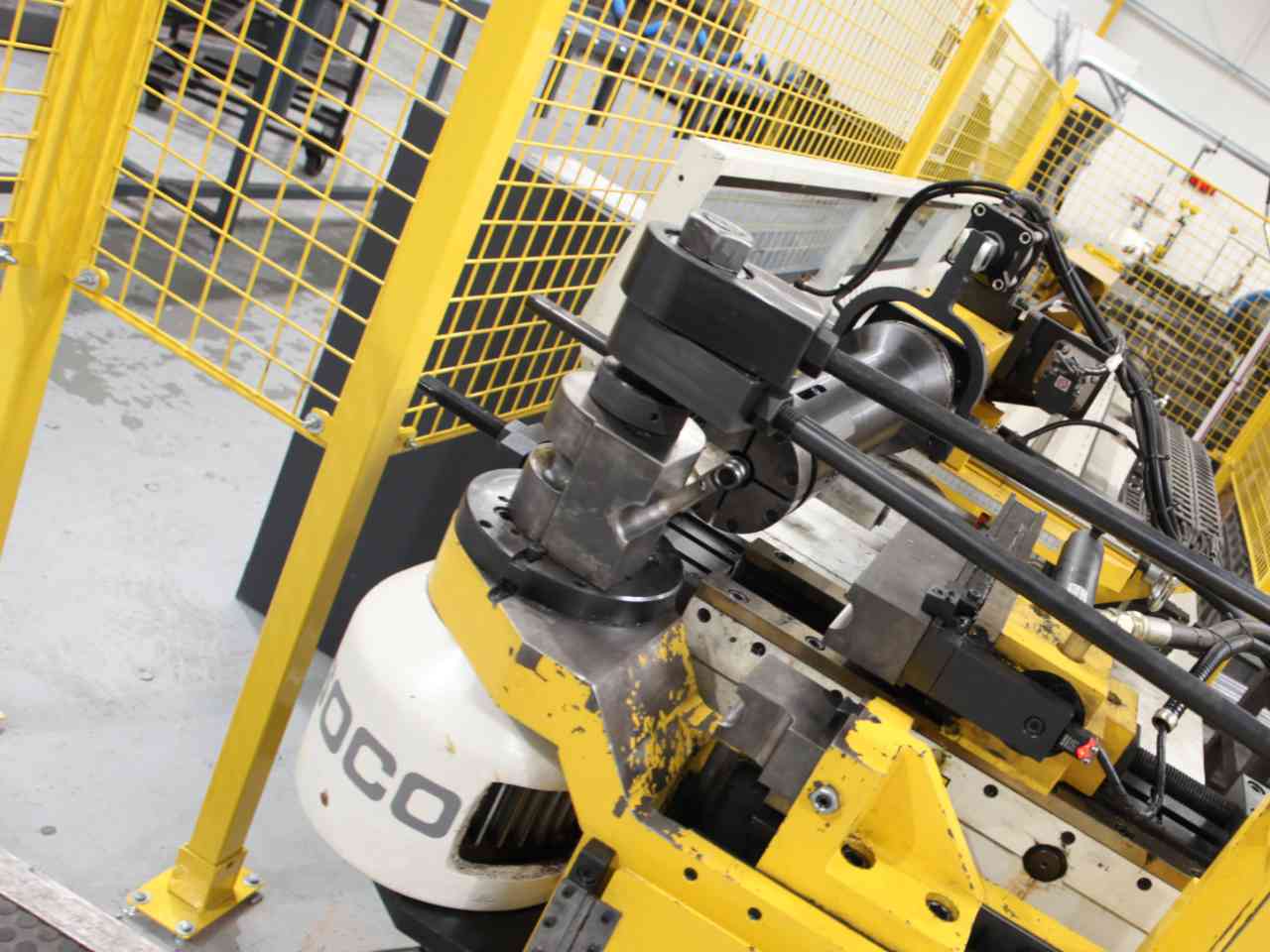

Although mandrel tube bending is largely performed using CNC (Computer Numerical Control) machines for precision and repeatability, the fundamental steps of the process remain the same and are as follows:
1. Tube Preparation
The process begins with cleaning and cutting the tube to the required length. Proper preparation ensures consistent results and reduces the risk of defects.
2. Clamping and Alignment

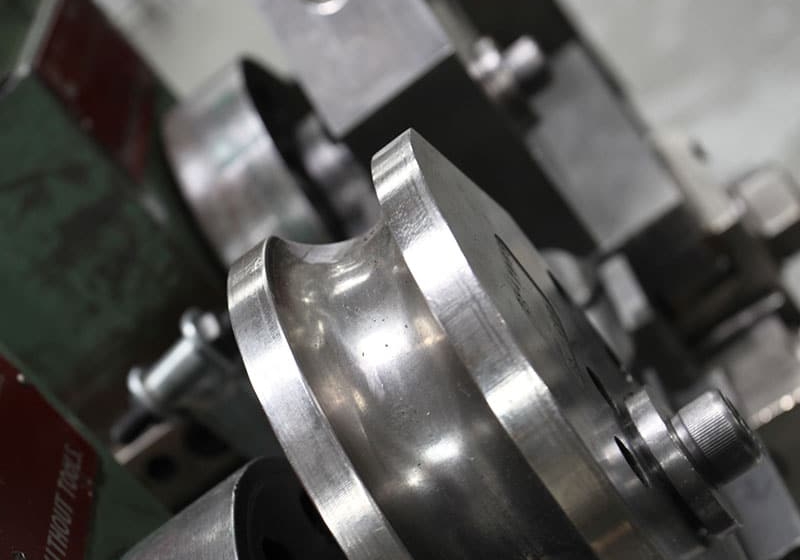

The tube is clamped onto the bending machine, and the desired bending radius is set. Specialised dies ensure precise alignment and accuracy.
3. Mandrel Insertion
The mandrel is inserted into the tube at the bend area. Typically, the mandrel extends just forward of the tangent line, with its exact position tailored to the specific application.
4. Bending Process
As the bending machine applies force to shape the tube, the mandrel supports the interior, preventing wrinkles, collapses, or thinning of the tube walls.
5. Inspection and Finishing
After bending, the tube is inspected to ensure it meets the required specifications. Additional metal finishing processes, such as deburring or coating, may follow.
Watch the video below to see CNC mandrel tube bending in action at RCT:
Applications of Mandrel Bending
Mandrel bending finds applications across various industries. In the automotive industry, for example, it is used for exhaust systems and roll cages with the consistent bends facilitated by mandrel bending optimising airflow and structural strength respectively.
In aerospace, the technique meets rigorous standards with precision, producing lightweight, durable tubing for fuel lines, hydraulic systems and structural supports.
Tubular metal furniture also relies on mandrel bending for smooth, aesthetically pleasing bends. This enables intricate designs without compromising on either strength or appearance.
Industrial applications, such as those in oil and gas or construction, utilise mandrel bending to produce robust pipes and conduits capable of withstanding extreme conditions.
Mandrel Bending:
A Reliable Solution for Manufacturing
Mandrel bending is an essential technique for producing high-quality, reliable components across a wide range of industries. From achieving tight tolerances in aerospace tubing to ensuring the structural integrity of automotive exhaust systems, CNC mandrel bending is a common feature in modern manufacturing.
If you’re considering mandrel bending for your next project, RCT is here to help. With our expertise and state-of-the-art CNC equipment, we ensure every tube is crafted to your exact specifications. Contact us today to discuss your requirements and find out how we can support your manufacturing needs.
