Laser Cutting vs Metal Punching
Which is better for metal work?
Choosing the right cutting method is essential in metal fabrication for achieving the best results. Laser cutting and metal punching are two popular techniques, each with its own strengths. This article explores the details of both methods, comparing their uses, benefits, and limitations.
By understanding these processes, you can decide which is best suited for your project, whether you need precise, intricate designs or efficient high-volume production. This guide aims to provide clear insights to help you make an informed choice for your metalworking needs.
What is Laser Cutting?

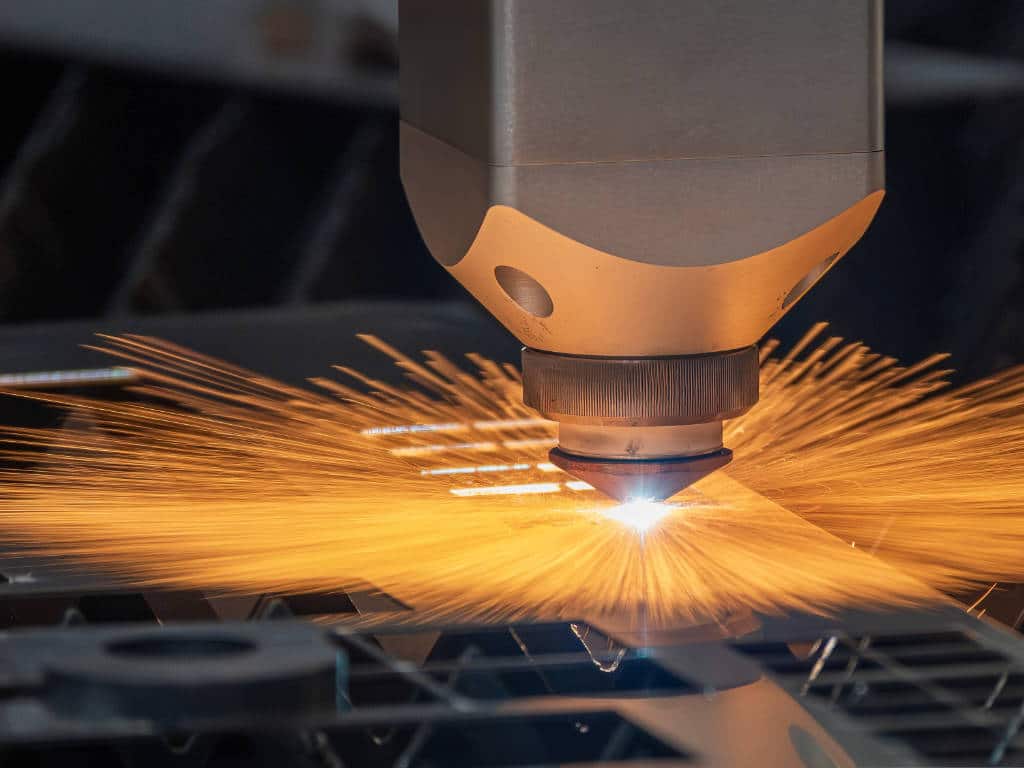

Laser cutting is a technology that uses a laser to cut materials. The process involves focusing a high-powered laser beam onto the material, which vaporises the material, resulting in a precise cut. This method is highly versatile and can be used on a variety of metals.
Types of Laser Cutters
There are three primary types of laser cutters used in industry:
These are the most common type of lasers and operate by using an electric current to excite a gas mixture, typically composed of carbon dioxide, nitrogen, helium, and sometimes hydrogen or xenon. One of the key advantages of CO2 lasers is their efficiency and effectiveness in processing a wide range of materials, including wood, acrylic, glass, paper, and textiles.
Known for their efficiency, fibre lasers are ideal for metal cutting due to their high precision and speed. Fibre lasers operate by using a bank of diodes to create light, which is then channelled and amplified through a fibre optic cable that is doped with rare-earth elements. Fibre lasers are appreciated for their low maintenance requirements and long operational life, making them a cost-effective option for continuous, high-demand manufacturing processes.
The Nd laser typically uses a pure neodymium-doped glass or crystal, while the Nd:YAG laser uses yttrium aluminium garnet crystal doped with neodymium. These lasers are capable of producing a high output power making them highly effective for applications like welding, precision cutting of metals and other materials, and for medical procedures such as laser surgery and skin resurfacing.
Common Applications
Laser cutting is widely used in industries such as automotive, aerospace, and electronics. It is ideal for creating intricate designs, detailed components, and precise parts. Applications include cutting metal sheets and manufacturing parts with tight tolerances.
What is Metal Punching?

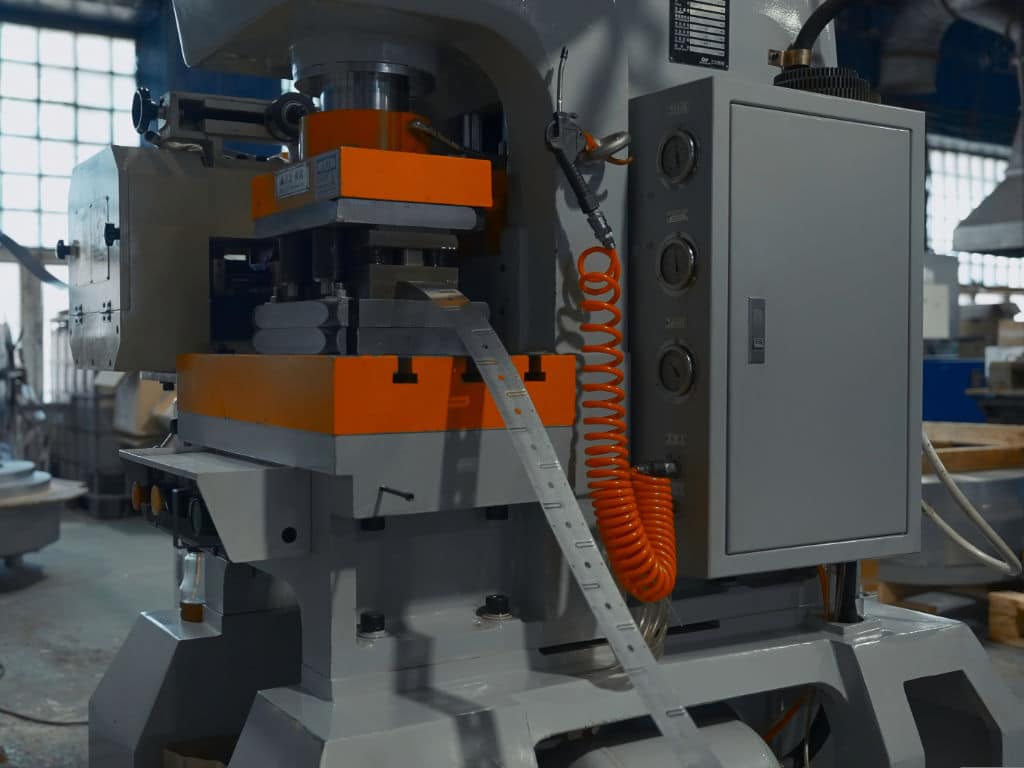

Metal punching is a process that involves using a punch press to force a tool through the material to create holes or shapes. The process can be either manual or automated.
Types of Punching Machines
There are various types of punching machines, each suited to different tasks:

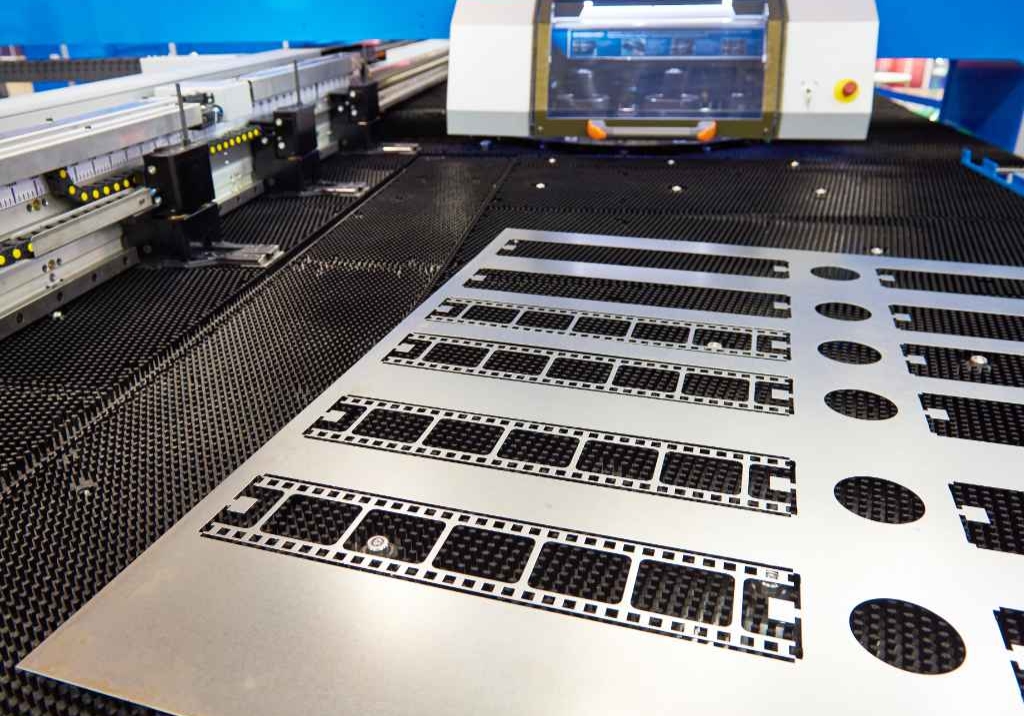

These machines operate by holding multiple punch-and-die pairs in a rotating turret, allowing operators to quickly switch between tools to create various cut-outs and shapes in a metal sheet. This versatility is particularly valuable in high-production settings where speed and efficiency are paramount.
Hydraulic punch presses operate using hydraulic systems that apply pressure to drive a punch through the material, making them ideal for working with a variety of metals and other rigid materials. Their ability to exert consistent force across a wide area allows them to perform tasks such as punching and blanking with high precision.
Mechanical punch presses operate by converting the rotary motion of a motor into a linear motion, typically through the use of a crank mechanism, which drives the punch or ram. This type of press is highly efficient for repetitive tasks, making it ideal for manufacturing environments where the same shape needs to be punched out of materials at high speeds.
Common Applications
Metal punching is used in the construction, automotive, and appliance industries. It is particularly effective for creating large volumes of parts with uniform holes or shapes, such as brackets, panels, and components that require consistent perforations.
Laser Cutting Different Types of Metal
Laser cutting is highly versatile when it comes to material compatibility. It can handle a wide range of metals, making it suitable for various industrial applications. The most commonly used metals for laser cutting include:
This is a popular choice for laser cutting due to its relatively low cost and excellent machinability. It is commonly used in construction, automotive, and manufacturing industries.
Laser cutting can produce precise and clean cuts in stainless steel, which is widely used in the medical, food processing, and automotive industries due to its corrosion resistance and durability.
Known for its light weight and strength, aluminium can be efficiently cut with lasers. It is extensively used in the aerospace, automotive, and consumer electronics industries.
Although copper is a reflective material that can pose challenges for laser cutting, modern fibre lasers have improved capabilities to handle it effectively. Copper is often used in electrical components and plumbing.
Similar to copper, brass is another reflective metal that can be cut with advanced laser technology. It is used in decorative applications, musical instruments, and fittings.
Punching Different Types of Metal
Metal punching is also compatible with a variety of metals, though the choice may be influenced by the thickness and required precision of the end product.
Frequently used for punching, mild steel offers good machinability and is suitable for creating various components such as brackets, enclosures, and panels.
Stainless steel can be punched effectively, though it may require more powerful machines due to its hardness. It is used in applications where corrosion resistance and strength are paramount.
Aluminium’s ductility makes it suitable for punching, especially for creating lightweight components in the aerospace and automotive sectors.
While punching copper is less common due to its malleability, it is still used for specific applications requiring electrical conductivity and thermal properties.
Brass can be punched for applications requiring decorative finishes or specific mechanical properties, such as in the manufacture of locks and gears.
Depth/Thickness Limitations
The thickness of the material is a critical factor in determining the suitability of laser cutting or punching. Each method has its strengths and limitations based on the material thickness:
Laser Cutting:
Laser cutting excels with thinner materials, typically up to 25mm in thickness, depending on the type of laser used. For instance, CO2 lasers can handle up to 20mm of mild steel, while fibre lasers can cut up to 25mm.
Thicker materials can be cut, but the process may slow down, and the quality of the cut might diminish. The high precision of laser cutting is advantageous for thin sheets where intricate designs and tight tolerances are required.
Metal Punching:
Punching is more suitable for thicker materials, generally up to 12mm, though some powerful machines can handle slightly thicker metals. It is particularly efficient for creating large volumes of parts from thicker sheets, where the speed and repeatability of punching can be maximised.
Punching thicker materials often requires more powerful hydraulic or mechanical presses, and the tool wear can be significant, affecting long-term cost efficiency.
By understanding the specific capabilities and limitations of each process concerning material types and thicknesses, you can make an informed decision that aligns with your project requirements, ensuring optimal performance and cost-effectiveness in your metal fabrication tasks.
Precision and Accuracy

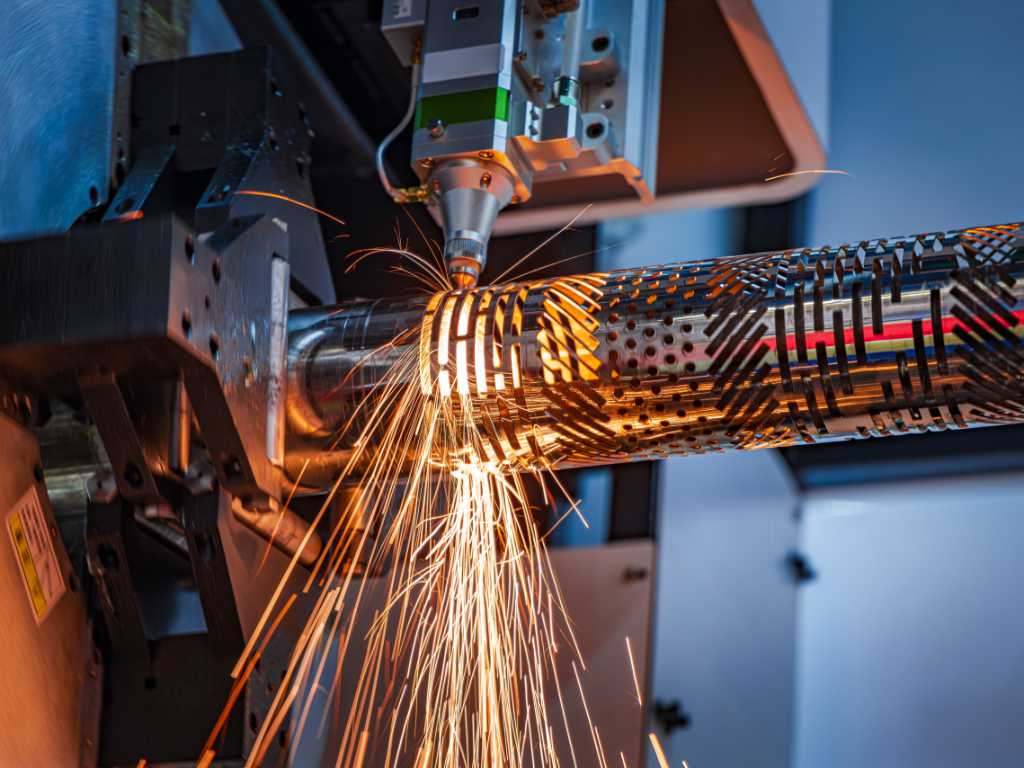

Laser Cutting Tolerances
Laser cutting is known for its high precision and tight tolerances, often within ±0.1mm. This accuracy is crucial for applications requiring detailed and intricate cuts.
Punching Tolerances
Punching tolerances are generally within ±0.5mm. While this is sufficient for many applications, it may not be adequate for highly precise or intricate parts.
Edge Quality Comparison
Laser cutting typically produces smooth and clean edges, reducing the need for secondary finishing processes. In contrast, punching can sometimes leave burrs or rough edges that may require additional processing such as deburring.
Speed and Productivity
Production Rates for Laser Cutting
Laser cutting is relatively fast, especially for complex shapes and intricate designs. The speed can vary based on the material and thickness but generally allows for quick turnaround times.
Production Rates for Punching
Punching is extremely fast for repetitive, high-volume tasks. It excels in producing large quantities of uniform parts quickly, making it highly efficient for mass production.
Factors Affecting Speed
Several factors influence the speed of both processes, including material type, thickness, and the complexity of the design. Laser cutting can slow down with thicker materials or more intricate designs, while punching speed can be impacted by the need to change tools frequently for different shapes.
Flexibility and Design Complexity
Capabilities of Laser Cutting for Intricate Designs
Laser cutting is unparalleled in its ability to produce intricate and complex designs. The precision of the laser allows for detailed cuts that are impossible with traditional punching methods.
Limitations of Punching for Complex Shapes
While punching is excellent for simple shapes and repetitive patterns, it is limited in its ability to handle complex designs. The need for different tools for each shape can also slow down the process and increase costs.
Energy Efficiency & Power Consumption
Laser cutting generally consumes more energy than punching due to the high power needed to generate the laser beam. However, advancements in technology are making lasers more energy-efficient. Punching machines, particularly mechanical ones, tend to use less energy, making them more cost-effective in terms of power consumption.
Choosing Between Laser Cutting and Punching
When deciding between laser cutting and punching, several factors need to be considered:
- Project Requirements: Assess the complexity, precision, and volume of the parts needed.
- Volume: The amount of parts required, including repeatability and production speed needs to be taken into account.
- Budget: Consider the cost implications of each method, including energy consumption, tool changes, and potential secondary finishing processes.
Scenarios Favouring Laser Cutting
Laser cutting is ideal for projects requiring high precision, intricate designs, and a variety of materials. It is also beneficial when a smooth edge finish is essential, reducing the need for additional processing. For mass production ion runs where intricate designs are not required however, laser cutting may not be cost effective.
Scenarios Favouring Punching
Punching is more suitable for high-volume production runs which require simple and uniform sections cutting out. It is also advantageous for thicker materials and where cost-efficiency is a primary concern. However, the potential need for deburring and limitations when it comes to shape intricacies and tolerance may prove punching unviable.
Understanding the specific needs of your project will help you choose between laser cutting and punching. If you think that your next project may require either of these processes, get in touch with RCT. Our expert team will be able to select the best process for your product and ensure the best possible result.
